Connect PNP or NPN Sensor to PLC Keyence


Cable Function of Photoelectric Sensors :
Brown cable is connected to positive power supply
Blue cable is connected to negative power supply
Black cable is connected to Input PLC
Pink cable for Dark ON or Light ON or not used = Light ON

Sensor Output Specifications :
NPN Open-Collector Output
PNP Open-Collector Output


Connect NPN Sensor to Input PLC Keyence

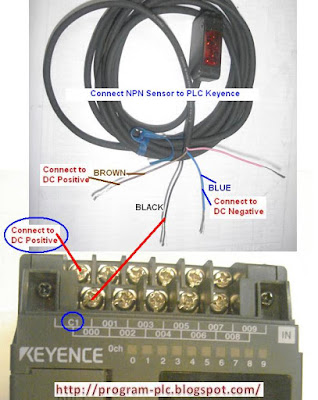

Connect NPN Sensor to PLC Keyence


Connect PNP Sensor to Input PLC Keyence
Connect PNP Sensor to PLC Keyence
