Speed Control Motor to PLC





Example AC Speed Control Motor System :
AC Speed Control Motor
Example System Configuration from AC Speed Control Motor System:
System Configuration Speed Control Motor to PLC
Example Operation Panel from AC Speed Control Motor
The speed can be set easily with the potentiometer on the speed controller front panel, And Connecting to PLC with Rear Panel.
1. Front Panel :
Speed Controller Front
2. Rear Panel :
Speed Controller Rear
Example Connecting AC Speed Control Motor System to Input and Output PLC :

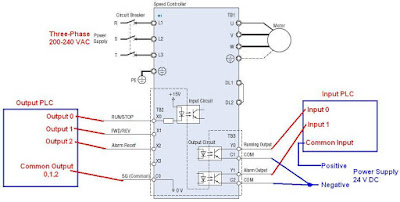

Connection Diagram with PLC
This connection diagram shows an example of three-phase 200-240 VAC Specifications.
Connecting AC Speed Control Motor to Input and Output PLC
