Simulation How to Work Timer for PLC Omron





How to Work Timer With Scan PLC :
How to Work Timer Scan 1 :
Input 000.00 = OFF , Present Value (PV) Timer = 0020, Setting Value (SV) = #0020 and TIM000 = OFF Or Output 005.00 = OFF.

How to Work Timer plc Omron scan 1

How to Work Timer Scan 2 :
Input 000.00 = ON , Present Value (PV) Timer = 0020 to Time Down to 0000 ( Zero ) and TIM000 = OFF Or Output 005.00 = OFF.



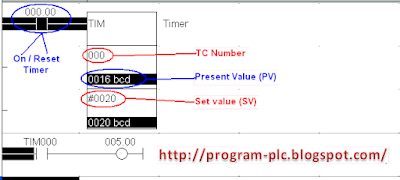

Time Down at 1.6 seconds

How to Work Timer plc Omron Time Down at 1.6 seconds

Time Down at 0.4 seconds

How to Work Timer plc Omron Time Down at 0.4 seconds

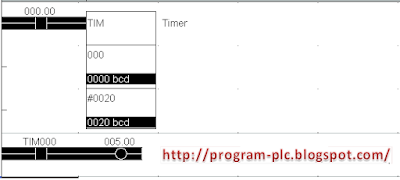

How to Work Timer Scan 3 :
Input 000.00 = ON , Present Value (PV) Timer = 0000 ( Zero ) and TIM000 = ON Or Output 005.00 = ON.

How to Work Timer plc Omron scan 3

How to Work Timer Scan 4 :
Input 000.00 = OFF ( Reset Timer ) , Present Value (PV) Timer = 0020 and TIM000 = OFF Or Output 005.00 = OFF.

How to Work Timer plc Omron scan 4

Simulation How to Work Timer PLC Omron
