Modbus RTU Communication Between PLC and Raspberry Pi Using Python




Modbus communication in these applications using serial communication / RS232 and Modbus RTU.
This application use simple modbus with Python programming on Raspberry Pi, and not use modbus from a third party.

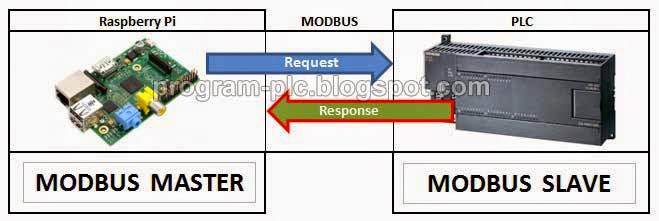

Modbus RTU Communication Between PLC and Raspberry Pi

For the hardware used in this application:
1. PLC
2. Raspberry Pi (Only for setting, using: monitor, keyboard, mouse, adapter, flash disk)
3. Serial PLC Cable
4.Serial Module ,and
5. Serial Crossover Connector.
For the connection beetween PLC and Raspberry Pi, Raspberry Pi Setting (Auto Login, Install PySerial, Setup UART Pins, Auto Run Python after Booting) :
http://program-plc.blogspot.com/2014/06/home-automation-with-raspberry-pi.html

Connection of Modbus RTU Communication Between PLC and Raspberry Pi:
Connection of PLC and Raspberry Pi

About Modbus:
Modbus application using function code 03, and function code 16. for this function code, you can go to the link:
http://program-plc.blogspot.com/2014/09/how-to-make-simple-modbus-rtu.html

Python Code of Modbus Communication on Raspberry Pi:
import serial
import random

#Sub Program
#CRC Calculation
def CRCcal(msg):
    #CRC (Cyclical Redundancy Check) Calculation
    CRC = 0xFFFF
    CRCHi = 0xFF
    CRCLo = 0xFF
    CRCLSB = 0x00
    for i in range(0, len(msg)-2,+1):
        CRC = (CRC ^ msg[i])
        for j in range(0, 8):
            CRCLSB = (CRC & 0x0001);
            CRC = ((CRC >> 1) & 0x7FFF)

            if (CRCLSB == 1):
                CRC = (CRC ^ 0xA001)
    CRCHi = ((CRC >> 8) & 0xFF)
    CRCLo = (CRC & 0xFF)
    return (CRCLo,CRCHi)


#CRC Valdation
def CRCvalid(resp):
    CRC = CRCcal(resp)
    if (CRC[0]==resp[len(resp)-2]) & (CRC[1]==resp[len(resp)-1]):return True
    return False


#Modbus Function Code 16 = Preset Multiple Registers
def Func16Modbus(slave,start,values):
    Slave_Address = slave
    Function = 16
    Starting_Address = start
    NumberofRegisters = len(values)
    Byte_Count = NumberofRegisters * 2
    message = [0 for i in range(9 + 2 * NumberofRegisters)]

    #index0 = Slave Address
    message[0] = (Slave_Address & 0xFF)
    #index1 = Function
    message[1] = (Function & 0xFF)
    #index2 = Starting Address Hi
    message[2] = ((Starting_Address >> 8) & 0xFF)
    #index3 = Starting Address Lo
    message[3] = (Starting_Address & 0xFF)
    #index4 = Number of Registers Hi
    message[4] = ((NumberofRegisters >> 8) & 0xFF)
    #index5 = Number of Registers Lo
    message[5] = (NumberofRegisters & 0xFF)
    #index6 = Byte Count
    message[6] = (Byte_Count & 0xFF)

    for i in range(0, NumberofRegisters):
        #Data Hi, index7 and index9
        message[7 + 2 * i] = ((values[i] >> 8) & 0xFF)
        #Data Lo, index8 and index10
        message[8 + 2 * i] = values[i] & 0xFF

    #CRC (Cyclical Redundancy Check) Calculation
    CRC = CRCcal(message)

    #index11= CRC Lo
    message[len(message) - 2] = CRC[0]#CRCLo
    #index12 = CRC Hi
    message[len(message) - 1] = CRC[1]#CRCHi

    if ser.isOpen:
        ser.write("".join(chr(h) for h in message))
        reading = ser.read(8)
        response = [0 for i in range(len(reading))]
        for i in range(0, len(reading)):
            response[i] = ord(reading[i])

        if len(response)==8:
            CRCok = CRCvalid(response)
            if CRCok & (response[0]==slave) & (response[1]==Function):return True
    return False


#Modbus Function Code 03 = Read Holding Registers
def Func03Modbus(slave,start,NumOfPoints):
    #Function 3 request is always 8 bytes
    message = [0 for i in range(8)]
    Slave_Address = slave
    Function = 3
    Starting_Address = start
    Number_of_Points = NumOfPoints

    #index0 = Slave Address
    message[0] = Slave_Address
    #index1 = Function
    message[1] = Function
    #index2 = Starting Address Hi
    message[2] = ((Starting_Address >> 8)& 0xFF)
    #index3 = Starting Address Lo
    message[3] = (Starting_Address& 0xFF)
    #index4 = Number of Points Hi
    message[4] = ((Number_of_Points >> 8)& 0xFF)
    #index5 = Number of Points Lo
    message[5] = (Number_of_Points& 0xFF)

    #CRC (Cyclical Redundancy Check) Calculation
    CRC = CRCcal(message)

    #index6= CRC Lo
    message[len(message) - 2] = CRC[0]#CRCLo
    #index7 = CRC Hi
    message[len(message) - 1] = CRC[1]#CRCHi

    if ser.isOpen:
        ser.write("".join(chr(h) for h in message))
        responseFunc3total = 5 + 2 * Number_of_Points
        reading = ser.read(responseFunc3total)
        response = [0 for i in range(len(reading))]
        for i in range(0, len(reading)):
            response[i] = ord(reading[i])

        if len(response)==responseFunc3total:
            CRCok = CRCvalid(response)
            if CRCok & (response[0]==slave) & (response[1]==Function):
                #Byte Count in index 3 = responseFunc3[2]
                #Number of Registers = byte count / 2 = responseFunc3[2] / 2
                registers = ((response[2] / 2)& 0xFF)
                values = [0 for i in range(registers)]
                for i in range(0, len(values)):
                    #Data Hi and Registers1 from Index3
                    values[i] = response[2 * i + 3]
                    #Move to Hi
                    values[i] <<= 8
                    #Data Lo and Registers1 from Index4
                    values[i] += response[2 * i + 4]
                   negatif = values[i]>>15
                   if negatif==1:values[i]=values[i]*-1
                return values
    return ()


#Main Program
#Serial Port 9600,8,E,1
#Serial Open
try:
        ser = serial.Serial(
                port = '/dev/ttyAMA0',
                baudrate = 9600,
                bytesize = serial.EIGHTBITS,
                parity = serial.PARITY_EVEN,
                stopbits = serial.STOPBITS_ONE,
                timeout = 0.2
        )
except Exception, e:
        raise ValueError(e)


print "START"
while 1:
    #Serial Open Check
    if not ser.isOpen:ser.open()

    #Read of Registers
    Func03ArrayValue = Func03Modbus(1,0,2);#slave,start,number of registers
    if len(Func03ArrayValue)>0:
        for i in range(0, len(Func03ArrayValue)):
            print "Read of Registers" + str(i) + " = " + str(Func03ArrayValue[i])

    #Fill Random Value for Write
    totalvalue=2
    val = [0 for i in range(totalvalue)]
    for i in range(0, len(val)):
        val[i] = random.randrange(-32767,32767) #Random Valiue from -32767 to max 32767

    #Write of Registers
    WriteValid = Func16Modbus(1,2,val)#slave,start,array value
    if WriteValid:
        for i in range(0, len(val)):
            print "Write of Registers" + str(i) + " = " + str(val[i])

        print "#################################"

Download and Testing:
1. Download project file for Python on Raspberry pi, click here
On Raspberry Pi: Copy the file plc-modbus.py into /home/pi

2. Download PLC Ladder Programming for upload to PLC, click here

Video about testing:
Modbus Communication between PLC and Raspberry Pi
Thank you for watching my video
