Push ON Push OFF With PLC




Simulation Push ON Push OFF

Push ON Push OFF

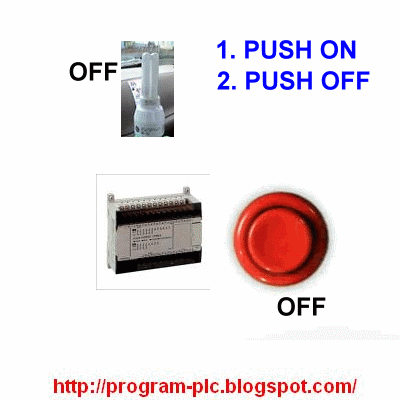

Detail Push ON Push OFF With PLC:

Push ON Push OFF
Information on Drawing Numbers for Push ON Push OFF With PLC:
1. Push Button Switch ( without lock )
2. External Output, example Lamp
3. PLC or Programmable Logic Controller


Number Of Inputs and Output PLC applied :
1. Number Of Inputs PLC is 1 Input:
--- 1 Unit Input for Push Button Switch ( without lock ).
--- Total Number Of Inputs PLC is Minimum 1 Input Unit.


2. Number Of Output PLC is 1 Output:
--- 1 Unit Output for Lamp.
--- Total Number Of Outputs PLC is Minimum 1 Output Unit.


Sequence PLC Programming for Push ON Push OFF:

Step 1 : First Push
a. If Push Button Switch = ON Then Lamp = ON.
b. If Push Button Switch = OFF Then Lamp = ON.


Step 2 : Second Push
a. IF Push Button Switch = ON then Lamp = OFF.
b. IF Push Button Switch = OFF then Lamp = OFF.

Download Simulation Push ON Push OFF :
Please Click : Push ON Push OFF


Can You make Program Ladder PLC ?

If Can't :

1. Methods : Internal Relay PLC

Push ON Push OFF With Internal Relay PLC Omron

Push ON Push OFF With Internal Relay PLC Mitsubishi

Push ON Push OFF With Internal Relay PLC Keyence


2. Methods : Counter PLC

Push ON Push OFF With Counter PLC Omron

Push ON Push OFF With Counter PLC Mitsubishi

Push ON Push OFF With Counter PLC Keyence

3. Methods : Data Memory PLC

Push ON Push OFF With Data Memory PLC Omron

Push ON Push OFF With Data Memory PLC Mitsubishi

Push ON Push OFF With Data Memory PLC Keyence
