PLC Simulator for Marking Machine with Ejector

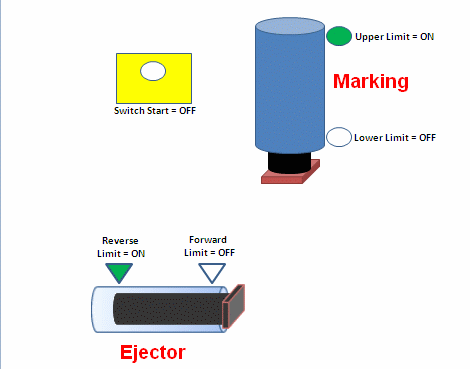

To See Simulation Marking Machine, Please...
Click This Image and Save This Image..

PLC Simulator

Program Sequence PLC for Marking with Ejector :

Step 1 :
If Upper LImit = ON And Switch Start = ON Then Marking DOWN = ON.

Step 2 :
If Marking DOWN = ON And Lower Limit = ON Then Marking UP = ON And Marking DOWN = OFF.

Step 3 :
If Marking UP = ON And Upper LImit = ON Then Marking UP = OFF And Ejector Forward = ON And Marking DOWN = OFF.

Step 4 :
If Ejector Forward = ON And Forward LImit = ON Then Ejector Forward = OFF And Ejector Reverse = ON And Marking DOWN = OFF And Marking UP = OFF.

Step 5 :
If Ejector Reverse = ON And Reverse LImit = ON Then Ejector Reverse = OFF And Ejector Forward = OFF And Marking DOWN = OFF And Marking UP = OFF.

Can You make Program Ladder PLC ?

If Can't :

To : PLC Ladder Simulator

To : PLC Omron for Marking with Ejector

To : PLC Mitsubishi for Marking with Ejector

To : PLC Keyence for Marking with Ejector
