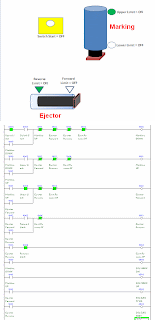

Animation Marking Machine,
Click This Image and Save This Image..
Mnemonic list of PLC Ladder for Marking Machine with Ejector (PLC Keyence) :
LD 0000 ; Upper Limit
AND 0001 ; Swicth Start
OR 1000 ; Marking DOWN
ANB 1001 ; Marking UP
ANB 1002 ; Ejector Forward
ANB 1003 ; Ejector Reverse
ANB 1004 ; Eject Reverse OFF
OUT 1000 ; Marking DOWN
LD 1000 ; Marking DOWN
AND 0002 ; Lower Limit
OR 1001 ; Marking UP
ANB 1002 ; Ejector Forward
ANB 1003 ; Ejector Reverse
ANB 1004 ; Eject Reverse OFF
OUT 1001 ; Marking UP
LD 1001 ; Marking UP
AND 0000 ; Upper Limit
OR 1002 ; Ejector Forward
ANB 1003 ; Ejector Reverse
ANB 1004 ; Eject Reverse OFF
OUT 1002 ; Ejector Forward
LD 1002 ; Ejector Forward
AND 0003 ; Forward Limit
OR 1003 ; Ejector Reverse
ANB 1004 ; Eject Reverse OFF
OUT 1003 ; Ejector Reverse
LD 1003 ; Ejector Reverse
AND 0004 ; Reverse Limit
OUT 1004 ; Eject Reverse OFF
LD 1000 ; Marking DOWN
OUT 0500 ; SOL MARK DW
LD 1001 ; Marking UP
OUT 0501 ; SOL MARK UP
LD 1002 ; Ejector Forward
OUT 0502 ; SOL EJECT FWD
LD 1003 ; Ejector Reverse
OUT 0503 ; SOL EJECT REV
END
ENDH
