PLC Simulator Marking Machine

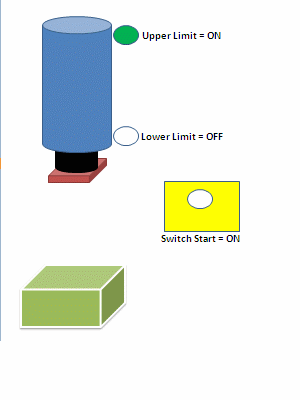

To See Animation Marking Machine, Please...
Click This Image and Save This Image..

PLC Simulator

Program Sequence PLC :

Step 1 :
If Upper LImit = ON And Switch Start = ON Then Cylindrical (Marking) DOWN = ON.

Step 2 :
If Cylindrical (Marking) DOWN = ON And Lower Limit = ON Then Cylindrical (Marking) UP = ON And Cylindrical (Marking) DOWN = OFF.

Step 3 :
If Cylindrical (Marking) UP = ON And Upper LImit = ON Then Cylindrical (Marking) UP = OFF.

Can You make Program Ladder PLC ?

If Can't :

To : PLC Ladder Simulator

To : PLC Omron for Marking Machine

To : PLC Mitsubishi for Marking Machine

To : PLC Keyence for Marking Machine
