Animation Ladder PLC,
Click This Image and Save This Image..

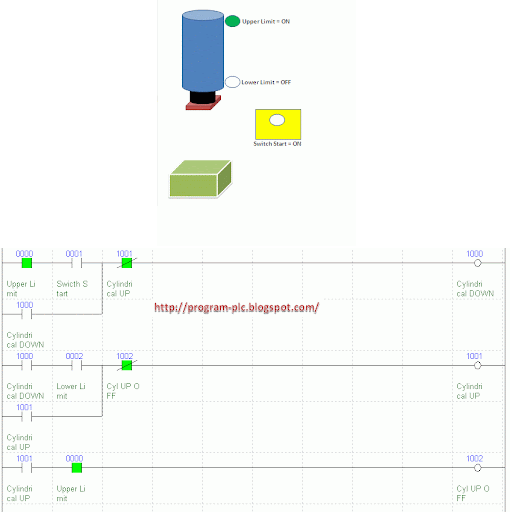

Mnemonic List (PLC Keyence) :
LD 0000 ; Upper Limit
AND 0001 ; Swicth Start
OR 1000 ; Cylindrical DOWN
ANB 1001 ; Cylindrical UP
OUT 1000 ; Cylindrical DOWN
LD 1000 ; Cylindrical DOWN
AND 0002 ; Lower Limit
OR 1001 ; Cylindrical UP
ANB 1002 ; Cyl UP OFF
OUT 1001 ; Cylindrical UP
LD 1001 ; Cylindrical UP
AND 0000 ; Upper Limit
OUT 1002 ; Cyl UP OFF
For Output PLC to Solenoid Cylindrical :
Exampel Output PLC : 500 to Solenoid for Moving Up and Output PLC : 501 to Solenoid for Moving Down Cylindrical Marking.
See Mnemonic List : Mnemonic List Some Brands PLC
To : PLC Simulator for Marking Machine with Ejector
Mnemonic List (PLC Keyence) :
LD 0000 ; Upper Limit
AND 0001 ; Swicth Start
OR 1000 ; Cylindrical DOWN
ANB 1001 ; Cylindrical UP
OUT 1000 ; Cylindrical DOWN
LD 1000 ; Cylindrical DOWN
AND 0002 ; Lower Limit
OR 1001 ; Cylindrical UP
ANB 1002 ; Cyl UP OFF
OUT 1001 ; Cylindrical UP
LD 1001 ; Cylindrical UP
AND 0000 ; Upper Limit
OUT 1002 ; Cyl UP OFF
For Output PLC to Solenoid Cylindrical :
Exampel Output PLC : 500 to Solenoid for Moving Up and Output PLC : 501 to Solenoid for Moving Down Cylindrical Marking.
See Mnemonic List : Mnemonic List Some Brands PLC
To : PLC Simulator for Marking Machine with Ejector
