PLC real time clock using arduino and real time clock module. for real time module use DS3231 RTC Board. The way it works is: Arduino reads data from the DS3231, this data is sent directly to the PLC memory. and for setting the date and time via the DS3124 and computer by using visual basic net (VB.Net)
PLC real time clock process:
1. Read date and time from DS3231 RTC Board with Arduino via I2C communication
2. Send data to PLC with Arduino via RS232 communication and PLC Protocol
3. Receive data in PLC data memory
Flow process of the PLC Real TIme Clock:
Hardware requirements:
1. DS3231 RTC Board Module
2. Arduino Nano
3. Multi Master Cable S7-200 RS-232
4. Siemens PLC S7-200 (not real time clock)
5. DB9 Male crossover cable
6. RS232 Serial Port To TTL Converter Module
Wiring of DS3231 Module to Arduino
Upload Program to Arduino
1. Download Arduino Project File, click here
2. Open Project file and Upload to Arduino
Date Time Setting in DS3231 Module using VB.NET:
1. Connect USB cable from Arduino to computer
2. Download VB Project File, click here
3. Open VB Project File and RUN
See Video for DS3231 Setting:
Download Ladder PLC Programming to PLC
1. Download file, click here
2. And Download Ladder programming to PLC

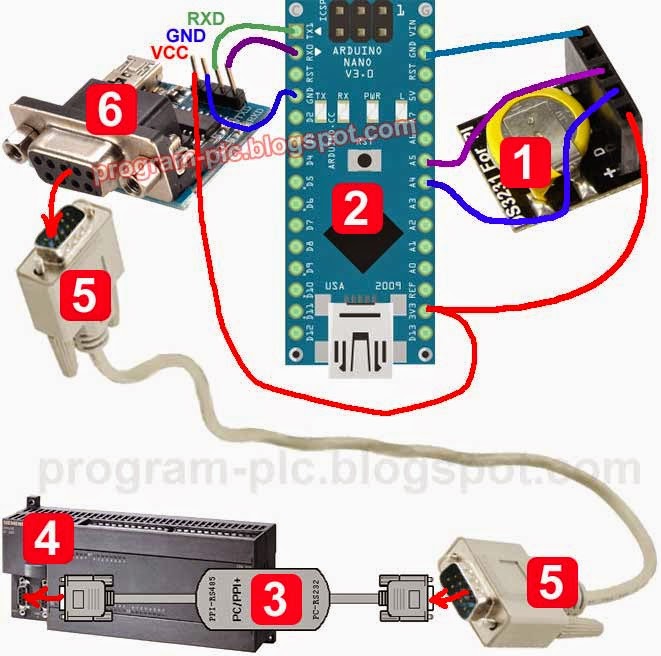

Wiring of DS3231,Arduino,PLC Cable, RS232 Cross and PLC
For a description of the image numbers, can be seen in the hardware requirements
Clock in PLC memory
VB0=SECOND : 0 to 59
VB1=MINUTE : 0 to 59
VB2=HOUR OF DAY : 0 to 23
VB3= DATE : 1 to 28/29/30//31
VB4= MONTH : 1 to 12
VB5= DAY OF WEEK : 1-SUNDAY, 2-MONDAY, 3-TUESDAY, 4-WEDNESDAY, 5-THURSDAY, 6-FRIDAY, 7-SATURDAY
VB6= YEAR: 0 to 99
Arduino Source Code
PLC real time clock process:
1. Read date and time from DS3231 RTC Board with Arduino via I2C communication
2. Send data to PLC with Arduino via RS232 communication and PLC Protocol
3. Receive data in PLC data memory
Flow process of the PLC Real TIme Clock:
Hardware requirements:
1. DS3231 RTC Board Module
2. Arduino Nano
3. Multi Master Cable S7-200 RS-232
4. Siemens PLC S7-200 (not real time clock)
5. DB9 Male crossover cable
6. RS232 Serial Port To TTL Converter Module
Wiring of DS3231 Module to Arduino
Upload Program to Arduino
1. Download Arduino Project File, click here
2. Open Project file and Upload to Arduino
Date Time Setting in DS3231 Module using VB.NET:
1. Connect USB cable from Arduino to computer
2. Download VB Project File, click here
3. Open VB Project File and RUN
See Video for DS3231 Setting:
Download Ladder PLC Programming to PLC
1. Download file, click here
2. And Download Ladder programming to PLC
Wiring of DS3231,Arduino,PLC Cable, RS232 Cross and PLC
For a description of the image numbers, can be seen in the hardware requirements
Clock in PLC memory
VB0=SECOND : 0 to 59
VB1=MINUTE : 0 to 59
VB2=HOUR OF DAY : 0 to 23
VB3= DATE : 1 to 28/29/30//31
VB4= MONTH : 1 to 12
VB5= DAY OF WEEK : 1-SUNDAY, 2-MONDAY, 3-TUESDAY, 4-WEDNESDAY, 5-THURSDAY, 6-FRIDAY, 7-SATURDAY
VB6= YEAR: 0 to 99
Arduino Source Code
#include <Wire.h>; const int DS1307 = 0x68; byte second = 0; byte minute = 0; byte hourofday = 0; byte dayofweek = 0; byte date = 0; byte month = 0; byte year = 0; byte set[7]; const char delimiter = ','; String message; byte i; int y; void setup() { Wire.begin(); Serial.begin(9600,SERIAL_8E1);//9600,8,Even,1 Serial.setTimeout(800); } void loop() { sendTime(); message = Serial.readString(); //= "year,month,date,week,hour,minute,second"; incomeTime(); } byte decToBcd(byte val) { return ((val/10*16) + (val%10)); } byte bcdToDec(byte val) { return ((val/16*10) + (val%16)); } void incomeTime() { i=0; y=-1; do { y = message.indexOf(delimiter); if(y != -1) { if(i<=5)set[i]=message.substring(0,y).toInt(); message = message.substring(y+1, message.length()); i++; } else { if(message.length() > 0 && i==6) set[i]=message.toInt(); } } while(y >=0); if (i==6){ if(set[0]>=0 && set[0]<=99){ if(set[1]>=1 && set[1]<=12){ if(set[2]>=1 && set[2]<=31){ if(set[3]>=1 && set[3]<=7){ if(set[4]>=0 && set[4]<=23){ if(set[5]>=0 && set[5]<=59){ if(set[6]>=0 && set[6]<=59){ setTime(); } } } } } } } } } void setTime() { year =set[0]; month =set[1]; date =set[2]; dayofweek =set[3]; hourofday =set[4]; minute =set[5]; second = set[6]; Wire.beginTransmission(DS1307); Wire.write(byte(0)); Wire.write(decToBcd(second)); Wire.write(decToBcd(minute)); Wire.write(decToBcd(hourofday)); Wire.write(decToBcd(dayofweek)); Wire.write(decToBcd(date)); Wire.write(decToBcd(month)); Wire.write(decToBcd(year)); Wire.write(byte(0)); Wire.endTransmission(); } void sendTime() { readTime(); int VB0 = second;// VB0=SECOND : 0 to 59 int VB1 = minute;//VB1=MINUTE : 0 to 59 int VB2 = hourofday;//VB2=HOUR OF DAY : 0 to 23 int VB3 = date;//VB3= DATE : 1 to 31 int VB4 = month;//VB4= MONTH : 1 to 12 int VB5 = dayofweek;//VB5= DAY OF WEEK : 1=SUNDAY, 2=MONDAY, 3=TUESDAY, 4=WEDNESDAY, 5=THURSDAY, 6=FRIDAY, 7=SATURDAY int VB6 = year;//VW6= YEAR 00 to 99 int VWstart = 0; //Start from VW0 int VWcount = 4; byte str_write[45]; long Temp_FCS=0; int i; str_write[1] = (byte)((VWcount * 2) + 31); str_write[2] = (byte)str_write[1]; str_write[24] = (byte)(VWcount * 2); str_write[16] = (byte)(str_write[24] + 4); str_write[33] = (byte)((VWcount * 16) / 256); str_write[34] = (byte)((VWcount * 16) % 256); str_write[29] = (byte)((VWstart * 8) / 256); str_write[30] = (byte)((VWstart * 8) % 256); str_write[0] = (byte)0x68;//H68 str_write[3] = (byte)0x68;//H68 str_write[4] = (byte)0x02;//H2 str_write[5] = (byte)0x00;//H0 str_write[6] = (byte)0x7C;//H7C str_write[7] = (byte)0x32;//H32 str_write[8] = (byte)0x01;//H1 str_write[9] = (byte)0x00;//H0 str_write[10] = (byte)0x0;//H0 str_write[11] = (byte)0x43;//H43 str_write[12] = (byte)0x01;//H1 str_write[13] = (byte)0x00;//H0 str_write[14] = (byte)0x0E;//HE str_write[15] = (byte)0x00;//H0 str_write[17] = (byte)0x05;//H5 str_write[18] = (byte)0x01;//H1 str_write[19] = (byte)0x12;//H12 str_write[20] = (byte)0x0A;//HA str_write[21] = (byte)0x10;//H10 str_write[22] = (byte)0x02;//H2 str_write[23] = (byte)0x00;//H0 str_write[25] = (byte)0x00;//H0 str_write[26] = (byte)0x01;//H1 str_write[27] = (byte)0x84;//H84 str_write[28] = (byte)0x00;//H0 str_write[31] = (byte)0x00;//H0 str_write[32] = (byte)0x04;//H4 str_write[35] = (byte)VB0; str_write[36] = (byte)VB1; str_write[37] = (byte)VB2; str_write[38] = (byte)VB3; str_write[39] = (byte)VB4; str_write[40] = (byte)VB5; str_write[41] = (byte)VB6; str_write[42] = (byte)0; for (i = 4; i <= 42; i++) { Temp_FCS = Temp_FCS + str_write[i]; } str_write[43] = (byte)(Temp_FCS % 256); str_write[44] = (byte)0x16;//H16 Serial.write(str_write, sizeof(str_write)); delay(100); byte str_val[6]; str_val[0] = (byte)0x10;//H10; str_val[1] = (byte)0x02;//H2; str_val[2] = (byte)0x00;//H0; str_val[3] = (byte)0x5C;//H5C; str_val[4] = (byte)0x5E;//H5E; str_val[5] = (byte)0x16;//H16; Serial.write(str_val, sizeof(str_val)); delay(100); } void readTime() { Wire.beginTransmission(DS1307); Wire.write(byte(0)); Wire.endTransmission(); Wire.requestFrom(DS1307, 7); second = bcdToDec(Wire.read()); minute = bcdToDec(Wire.read()); hourofday = bcdToDec(Wire.read()); dayofweek = bcdToDec(Wire.read()); date = bcdToDec(Wire.read()); month = bcdToDec(Wire.read()); year = bcdToDec(Wire.read()); }
