Data Blocks (DBs) can be used by your program to save data in the CPU. Your hard disk contains up to 8 Kbytes(8192Bytes) space. There are two types of data blocks. Global DBs, where all OBs, FBs and FCs read all saved data or can even write in the DB and local instance DBs, which are assigned a particular FB. In the DBs, different data types (e.g. BOOL or WORD) can be saved in arbitrary order. This structuring of a DB follows through input in a table with the tool LAD, STL, FBD - S7 Block Programming.
In the program structure from STEP 7, data blocks are found as follows:
Data blocks are generated and opened like program blocks in the tool LAD, STL, FBD: Programblocks. They serve e.g. for the saving of data and system states.
Before create Data Blocks (DBs), we must understand about addressing Data in Simatic Step7. Figure 2 show the addressing data elements in Simatic Step7. There is 3 elementary data type:
Start from Step 1: Setup PG/PC Interface, Step 2: Create New Project and Step 3: Add Station Object
Insert Data Block, in INSERT menu select S7 Block and then Data Block
Enter the number for Data Block in Name and type (in this case I set DB1), choose Shared DB so DB can accessed by another program. For Symbolic Name and Symbolic Comment is optional. Accept with OK
The Data Block is generated with a symbol Name. The Type, an Initial value as well as aComment (optional) are entered.The address is automatically generated and cannot be altered. In Data
Fill the Data Block like figure below, Click save for save all changes.
Expand folder counter in library, select S_CU function and drag to, main window.
Function Description
In this case, we will not use all parameter in S_Cu Function. We only use Input counter CU and Counter Value CV for store data in DB1. Create program like figure below
And create input output variable for IB 0 (Input), C 0 (Counter), and DB1.DBW0 (Data Block).
Download program
Run simulation
Set IB 0.0 to 1, and see counter in C 0 count 1 and counter store data into DB1.DBW0. Set IB 0.0 to 0 and repeat set IB 0.0 to 1 again, see the count in counter increase and store to DB1.DBW0.
In VIEW menu select Data View,
Select Monitor mode
And check data in DB1 in PLCSim and Program Object Data Block, it must be same.
Download project file click here
Video Demonstration: Data Blocks in Simatic Step 7 Siemens
In the program structure from STEP 7, data blocks are found as follows:
Figure 1 Data Blocks |
Data blocks are generated and opened like program blocks in the tool LAD, STL, FBD: Programblocks. They serve e.g. for the saving of data and system states.
Figure 2 Addressing Data elements |
Before create Data Blocks (DBs), we must understand about addressing Data in Simatic Step7. Figure 2 show the addressing data elements in Simatic Step7. There is 3 elementary data type:
- Bit data Type (Bool, Byte, Word, DWord, Char)
- Mathematical data type (Int, Dint, Real)
- Time types (s5Time, Time, Date, Time_of_Day)
Type |
Size in Bit
|
Range and Number Notation
|
Bool |
1
|
True/False |
Byte |
8
|
B#16#0 to B#16#FF |
Word |
16
|
W#16#0 to W#16#FFFF |
DWord |
32
|
DW#16#0000_0000 to DW#16#FFFF_FFFF |
INT |
16
|
-32768 to 32767 |
DINT |
32
|
-2147483648 to 2147483647 |
Real |
32
|
Upper Limit +/- 3.402832e+38 Lower Limit +/- 1.175495e-38 |
S5Time |
16
|
S5T#0H_0M_0S_10MS to S5T#2H_46M_30S_0MS and S5T#0H_0M_0S_0MS |
Time |
32
|
T#24D_20H_31M_23S_648MS to T#24D_20H_31M_23S_647MS |
Date |
16
|
D#1990-1-1 to D#2168-12-31 |
Time_Of_Day |
32
|
TOD#0:0:0.0 to TOD#23:59:59.999 |
Char |
8
|
A, B, etc. |
How to Generate Data Blocks (DBs) in Simatic S7-PLCSim
Step 1: Create New Project
Follow Step 1 to Step 3 of the article about Learning PLC Programming With SIMATIC S7-PLCSIMStart from Step 1: Setup PG/PC Interface, Step 2: Create New Project and Step 3: Add Station Object
Step 2: Insert S7 Program
Insert a new S7-Program, in INSERT menu select PROGRAM and then S7 PROGRAMFigure 3 Insert S7 program |
Step 3: Insert Data Block
Highlight the folder BlockFigure 4 Folder Block |
Insert Data Block, in INSERT menu select S7 Block and then Data Block
Figure 5 Insert Data Block |
Enter the number for Data Block in Name and type (in this case I set DB1), choose Shared DB so DB can accessed by another program. For Symbolic Name and Symbolic Comment is optional. Accept with OK
Figure 6 Data Block |
Step 4: Create Data variable
Open the data block DB1 with double click or open object.Figure 7 Data Block DB1 |

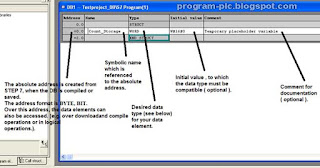

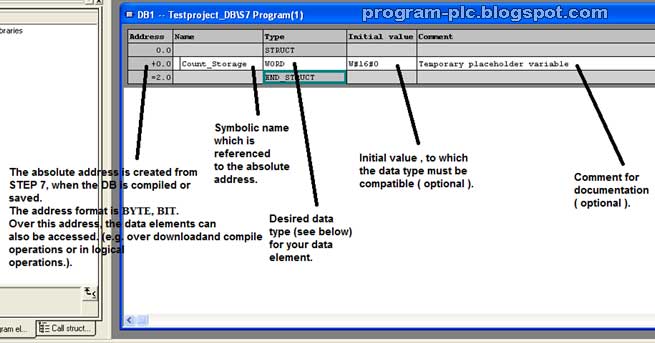

The Data Block is generated with a symbol Name. The Type, an Initial value as well as aComment (optional) are entered.The address is automatically generated and cannot be altered. In Data
Figure 8 Program Block for Data Block |
Fill the Data Block like figure below, Click save for save all changes.
Figure 9 Data Block |
Step 5: Store data into Data Block
Now we create program to write data to Data Block, in simatic manager double click on OB1. When Properties – Organization Block Window open choose LAD in Created in Language. Click OK.Figure 10 Open program Block |
Figure 11 Organization Block Properties |
Expand folder counter in library, select S_CU function and drag to, main window.
Figure 12 Insert S_CU Function |
Figure 13 Insert S_CU Function |
Function Description
Parameter |
Data Type
|
Memory Area
|
Description
|
C no
|
Counter
|
C
|
Counter Identification Number |
CU
|
BOOL
|
I,Q,M,L,D
|
Count up input |
S
|
BOOL
|
I,Q,M,L,D
|
Set Input for Presetting counter |
PV
|
Word
|
I,Q,M,L,D, or Constant
|
Enter Counter value as C#<value> in the range from 0 to 999 |
R
|
BOOL
|
I,Q,M,L,D
|
Reset Input |
CV
|
Word
|
I,Q,M,L,D
|
Current Counter Value, hexadecimal number |
CV_BCD
|
Word
|
I,Q,M,L,D
|
Current Counter Value, BCD coded |
Q
|
BOOL
|
I,Q,M,L,D
|
Status of the Counter. |
In this case, we will not use all parameter in S_Cu Function. We only use Input counter CU and Counter Value CV for store data in DB1. Create program like figure below
Figure 14 Counter Function |
Step 6: Simulation
Save and close program object window. Run PLCSim with click on PLCSim icon.Figure 15 PLCSim |
And create input output variable for IB 0 (Input), C 0 (Counter), and DB1.DBW0 (Data Block).
Figure 16 PLCSim ON |
Download program
Figure 17 Download Program |
Run simulation
Figure 18 Run Simulation |
Figure 19 Simulation Store data in DB |
Set IB 0.0 to 1, and see counter in C 0 count 1 and counter store data into DB1.DBW0. Set IB 0.0 to 0 and repeat set IB 0.0 to 1 again, see the count in counter increase and store to DB1.DBW0.
Step 7: Data View Mode in Data Block
Double click on DB1 in Simatic manager, to open DB1 editorFigure 20 Open DB1 |
In VIEW menu select Data View,
Figure 21 Data View |
Select Monitor mode
Figure 22 Monitor mode |

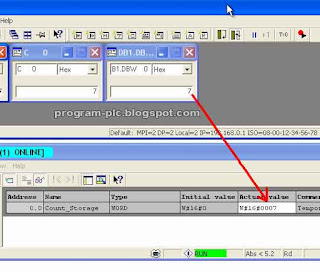

And check data in DB1 in PLCSim and Program Object Data Block, it must be same.
Figure 23 Data Block Monitor |
Download project file click here
Video Demonstration: Data Blocks in Simatic Step 7 Siemens
