Download Program to PLC Omron



For Download Program Ladder Diagram from PC to PLC Omron, Step by Step :
Step 1
Software PLC Omron, Open Software SYSWIN

Step 2
Click File --> Click Open Project... ( Ctrl + O)
OR
Click Icon Open Project
And Show Open Dialog
Open Project Ladder PLC Omron
Step 3

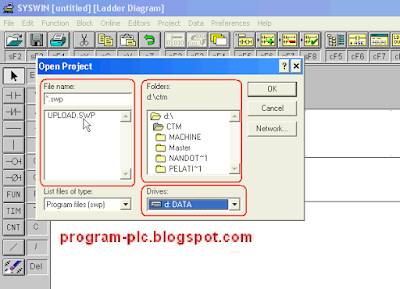

1. If Show Open Dialog Then Select Drives, Select Folders, and Select File name
2. After the File name has been Selected --> Click OK Button
Select File name Program PLC Omron
Step 4
If Lader Diagram is Open Then :
1. Click : Settings Type PLC Omron in SYSWIN Software
2. Click : Communication Settings PLC Omron

Step 5
Click Online --> Click Connect
Show Dialog Box "Connect"
Connect in SYSWIN PLC Omron
Step 6
Click Online --> Click Mode ...
Mode in PLC Omron
Step 7
Show Dialog Box "Change PLC Mode"
Click Mode STOP/PRG --> Click OK Button
Change PLC Mode STOP/PRG
Step 8
Show Dialog Box SYSWIN - Safety Mode " Continuing with this operation will affect the status of the PLC " --> Click Yes Button
Safety Mode
Step 9
1. Click Online --> Click Download program to PLC ...
2. Show Dialog Box " SYSWIN - Safety Mode"
3. Click Yes Button
Download program to PLC Omron
Step 10
1. Show Menu Download program to PLC --> Click OK Button
2. Waiting Process Download ... Program
Process Download to PLC Omron
Step 11
Download Successful --> Click OK Button
Download Successful to PLC Omron
Step 12
Change Mode to RUN 1. Click Online --> Click Mode ...
2. Show Dialog Box "Change PLC Mode"
3. Click Mode RUN --> Click OK Button
4. Show Dialog Box " SYSWIN - Safety Mode"
5. Click Yes Button
Change PLC Mode RUN
Video About Download Program to PLC Omron

http://program-plc.blogspot.com/2009/10/upload-program-plc-omron-to-pc.html

http://program-plc.blogspot.com/2009/10/settings-type-plc-omron-syswin.html
