Simulator DIFD PLC or PLF PLC





How to Work DIFD or PLF With Scan PLC :
Scan 1 :
Input 0000 = OFF , DIFD 1000 = OFF , Input 1000 = OFF , And Output 0500 = OFF

scan plc 1

Scan 2 :
Input 0000 = ON , DIFD 1000 = OFF , Input 1000 = OFF , And Output 0500 = OFF

scan plc 2

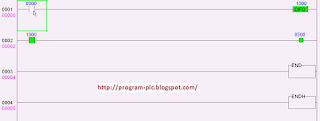

Scan 3 :
Input 0000 = OFF , DIFD 1000 = ON , Input 1000 = ON , And Output 0500 = ON

scan plc 3

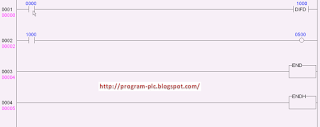

Scan 4 :
Input 0000 = OFF , DIFD 1000 = OFF , Input 1000 = OFF , And Output 0500 = OFF

scan plc 4

See Animation DIFD PLC or PLF PLC

Please Download for see Animation DIFD PLC or PLF PLC :
Simulator DIFD PLC or PLF PLC
