How To Upload and Download Program LG Master K PLC Using KGL WE




A. Introduction

  1. Program Compatible between LG Master-K Series.
  2. A user can use the Program (*.PGM) created in LG Master-K Series.

  3. Programmable Using KGL WE Application
    • A user can connected PC to the PLC using RS-232C local connection.
    • A user can use the application for Upload and Download program between PC and PLC.


B. RS-232C Interface for Local Connection

  1. RS-232C Interface for LG Master-K Series
  2. PLC can be connected with the serial port (COM1 ~ COM4) of Computer by RS-232C Cable.

  3. RS-232C Interface for Local Connection


  4. Open KGLWE Application on Desktop click twice

  5. KGLWE Application


  6. Click[Options]Menu in [Project] Menu and Select [Connection option] tap. Then the following screen will be shown.

  7. 4 KGLWE Application


  8. Select [RS-232C] and proper COM 1 port in Connection Option.
  9. Select [Local] as the [Depth of Connection] and click OK button.


C. How To Upload Program From PLC to PC

  1. Select [New Project] - [Blank Project] - [OK] - Select [MK_S] – Choose [120S]- Click [OK] button.

  2. Upload Program LG PLC


  3. Online Function is used for the communication between PLC and KGLWIN.
  4. Select [Online] in the Pull down menu and select [Connect]

    Upload Program LG PLC 2


  5. In this Function, you can setup the communication conditions such as Reading from  PLC, Writing to PLC, Monitoring, Debugging, PLC Mode Change, Link Parameter Setup, PLC I/O Information, Setup Enforced I/O, and Password Setup.

  6. To UPLOAD the program and parameters from PLC, select [Online]-[Read…] in the pull-down menu. Click OK

  7. Upload Program Parameters LG PLC


  8. Upload Done.

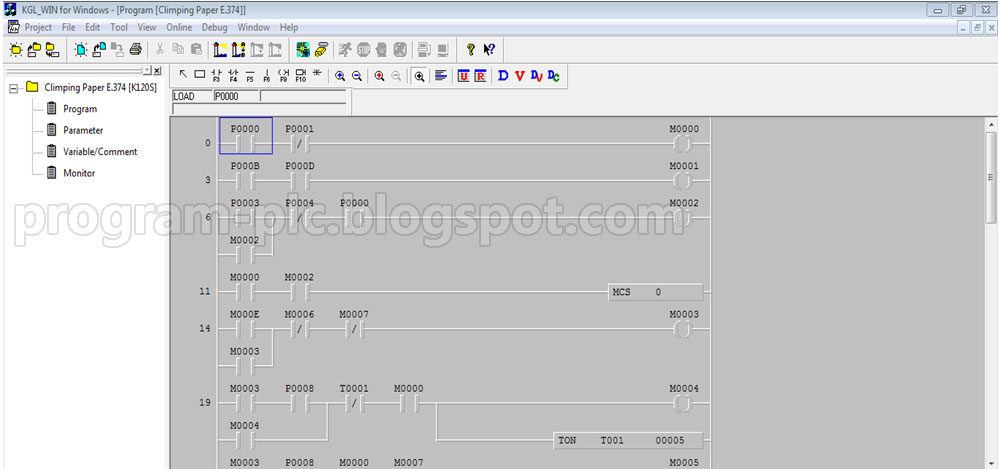

  9. Upload Program LG Master K PLC Using KGL WE


D. How to Download Program From PC to PLC

  1. This Function is to transfer the program and parameters from PC to PLC.
  2. Open program on project

  3. Download Program LG PLC 2


  4. Search Program in directories Select the Program and click Open

  5. Download Program LG PLC 3


  6. Select [Connect+Download+Run+Monitor Start] in [Online] Menu.

  7. Download Program LG PLC 4


  8. Click OK button to continue the process. Then, the program and parameters are downloaded to PLC.

  9. Download Program LG PLC 5


  10. Download is done

  11. Download Program LG Master K PLC Using KGL WE


Note: Download is only available on Stop (LG PLC Stop Mode)Mode. Confirm the status in the Change Mode.

KGL WE LG PLC STOP RUN ONLINE MODE
